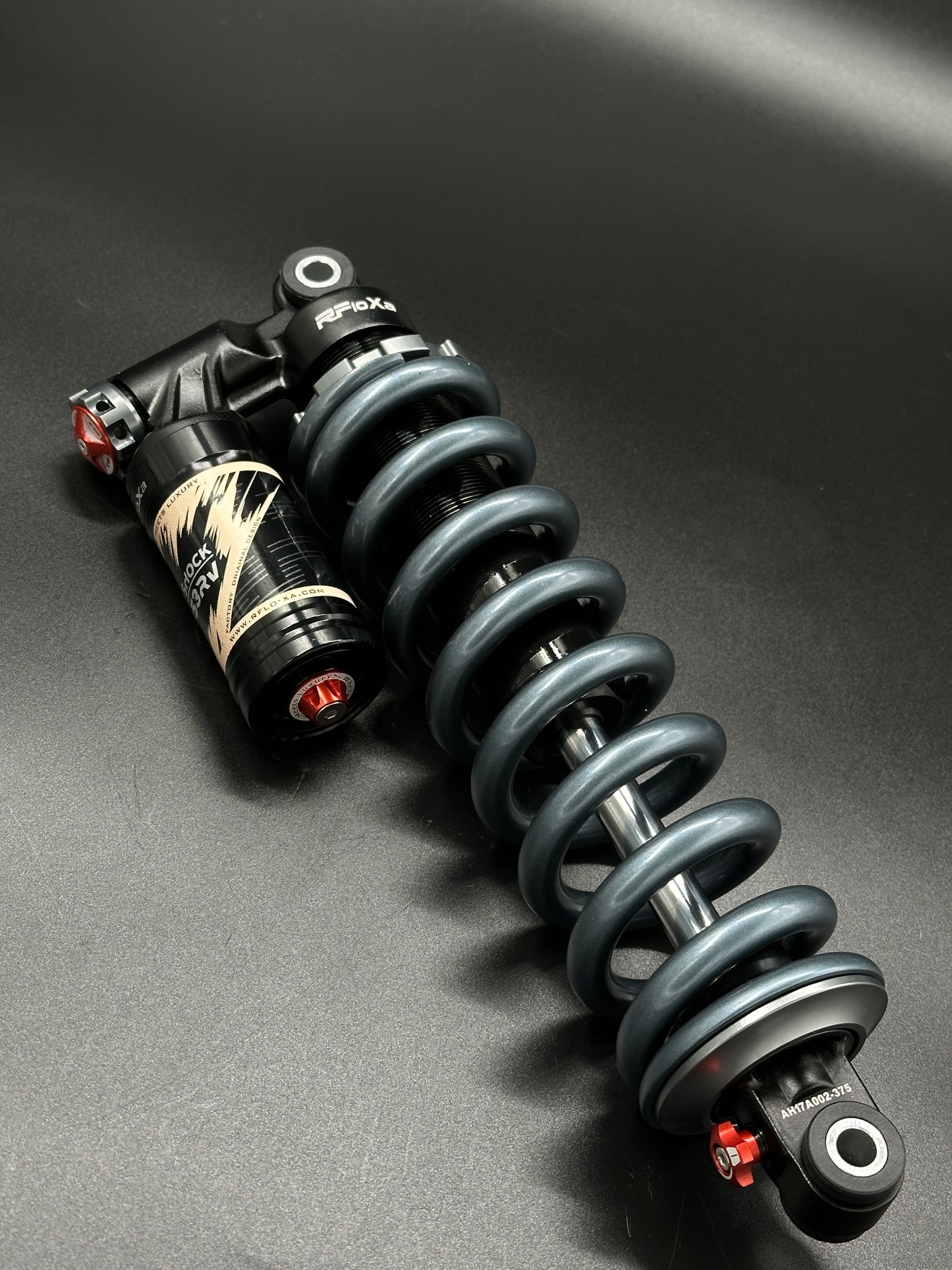

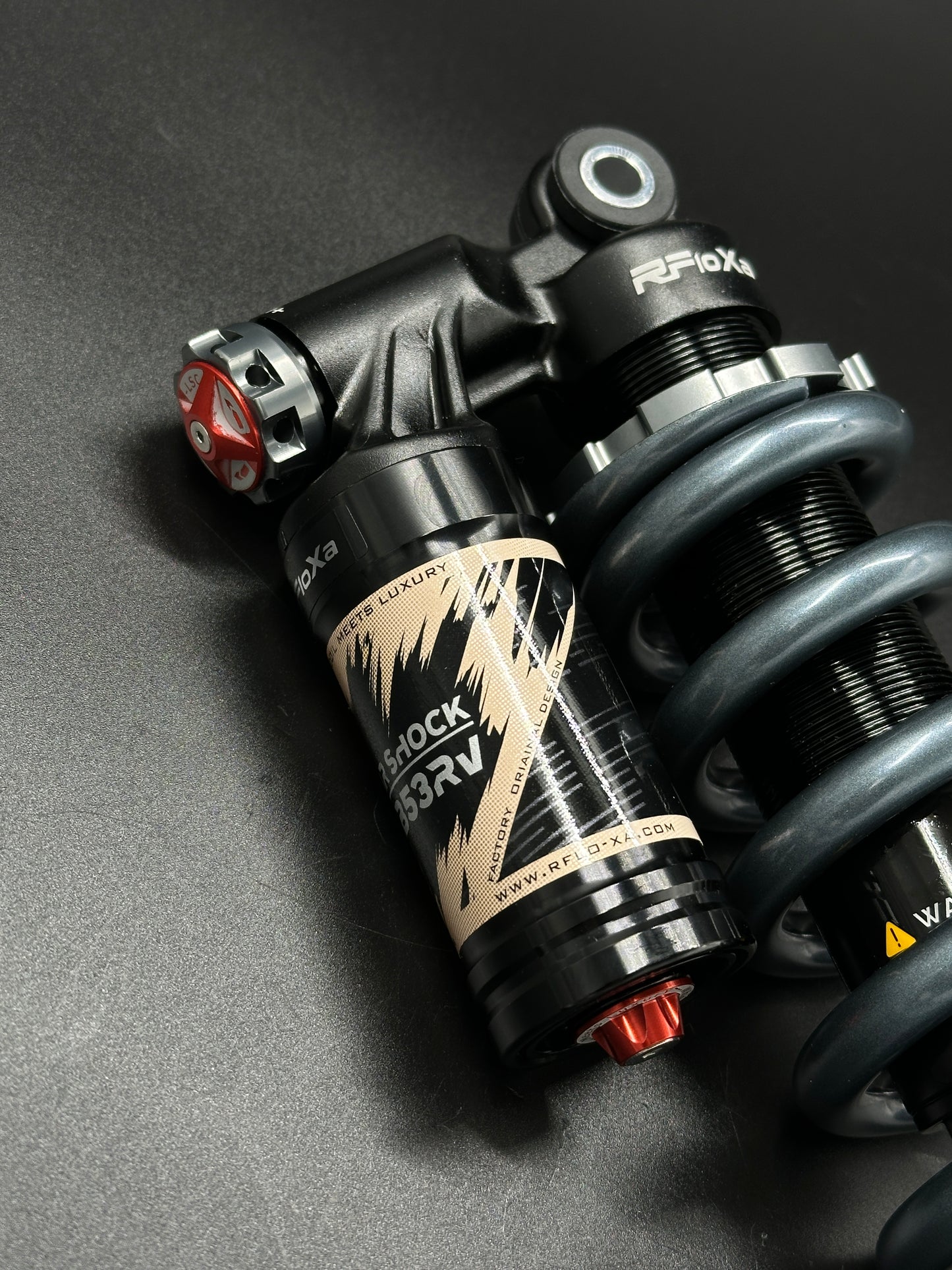

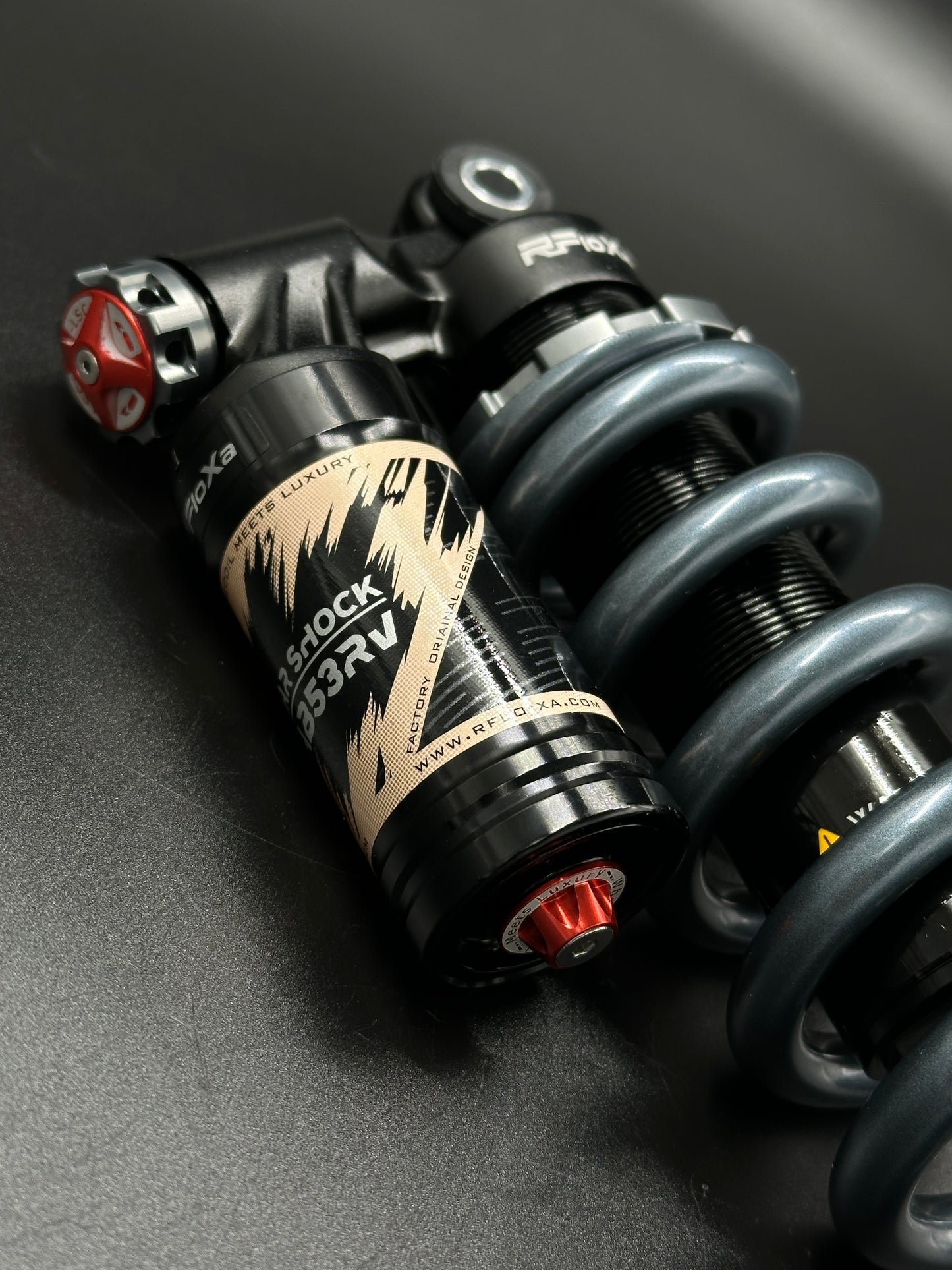

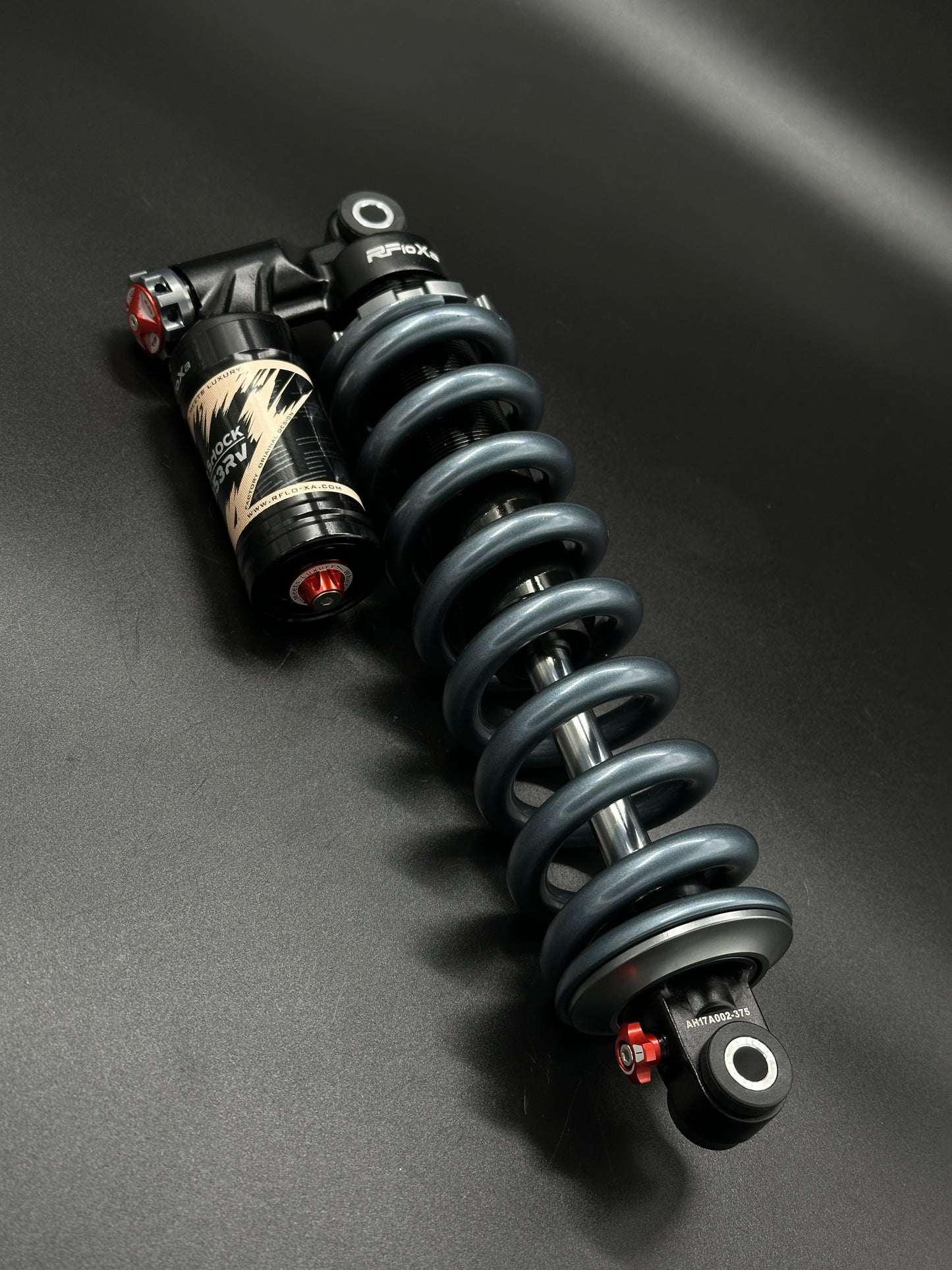

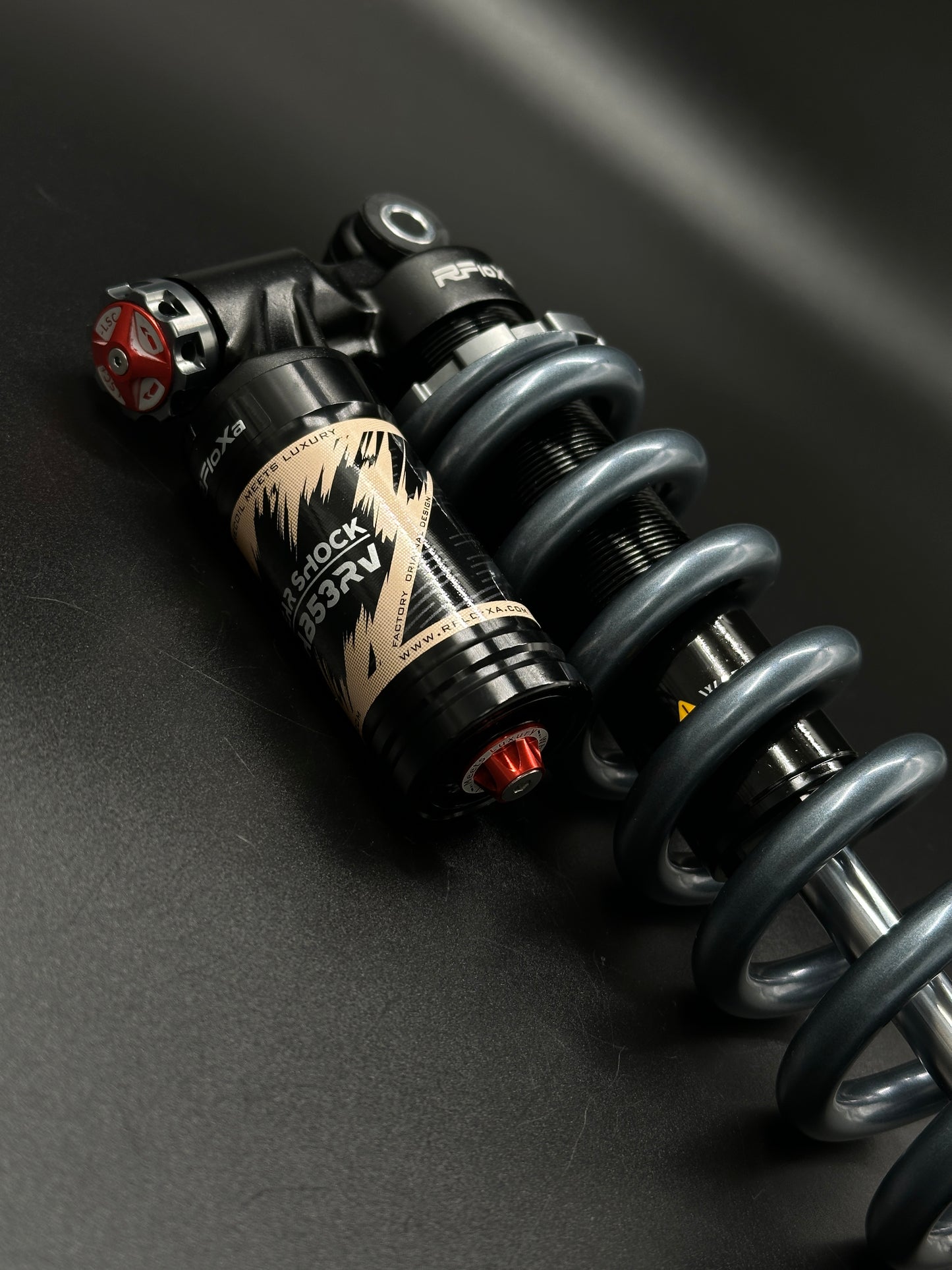

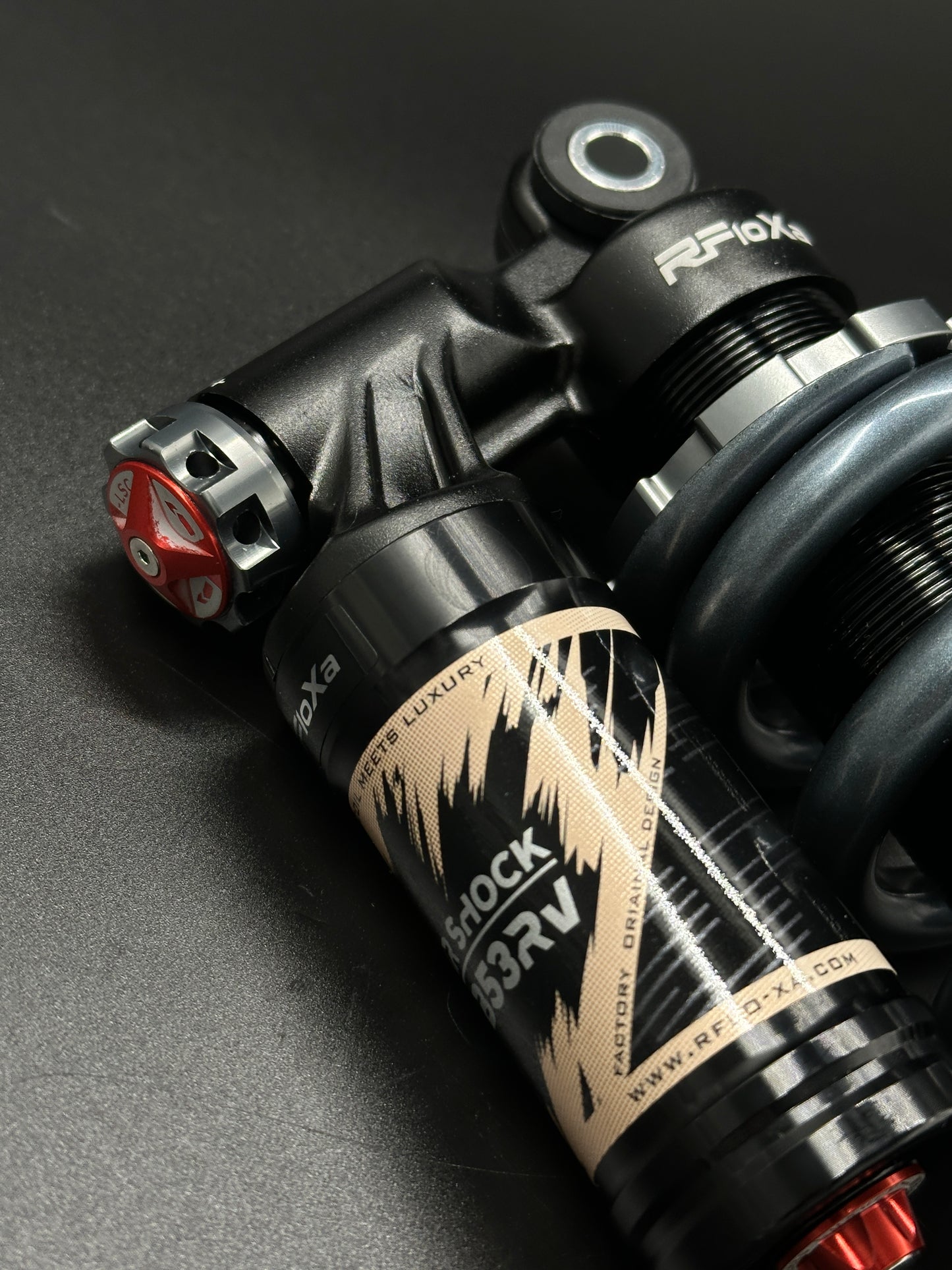

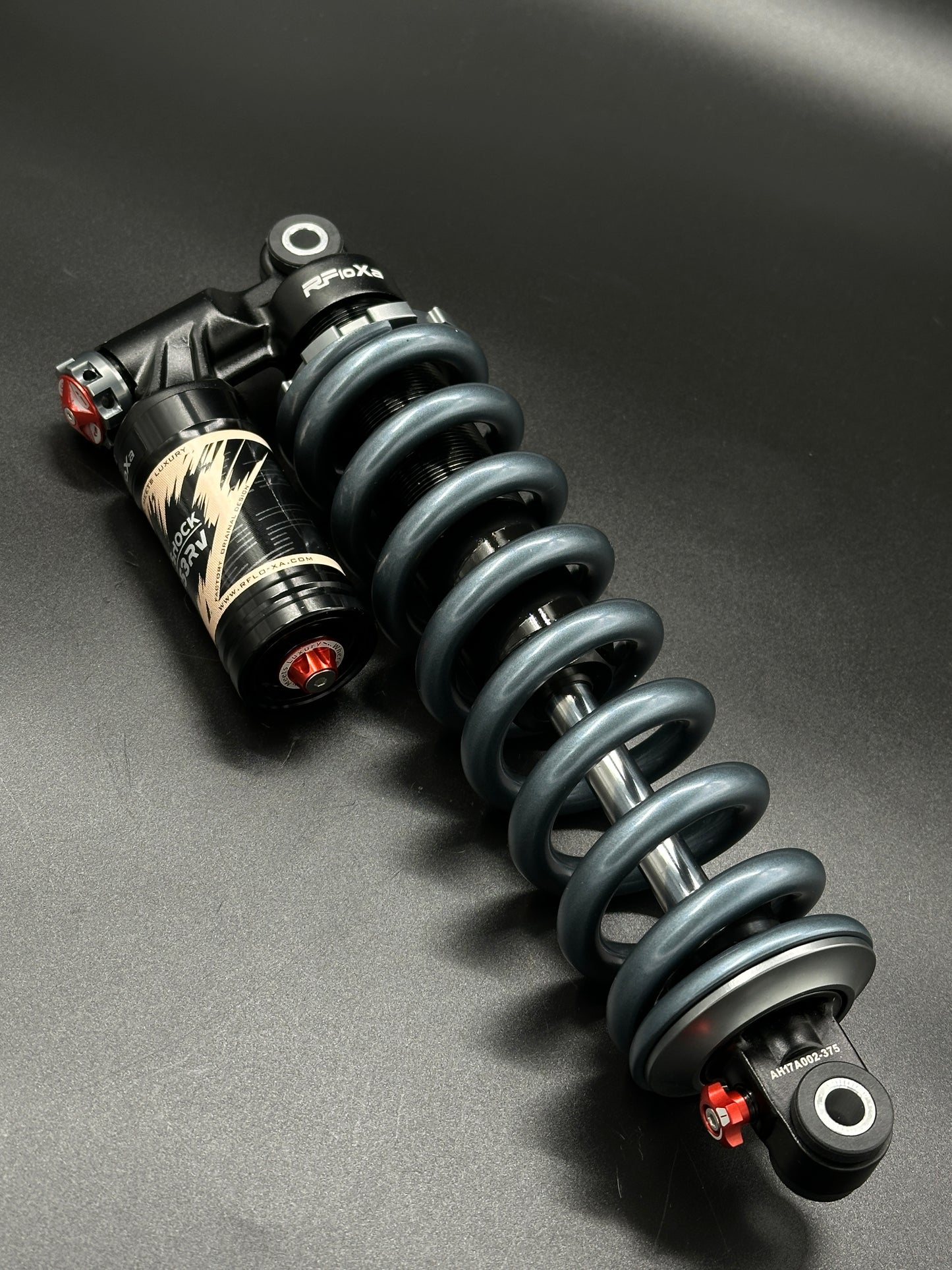

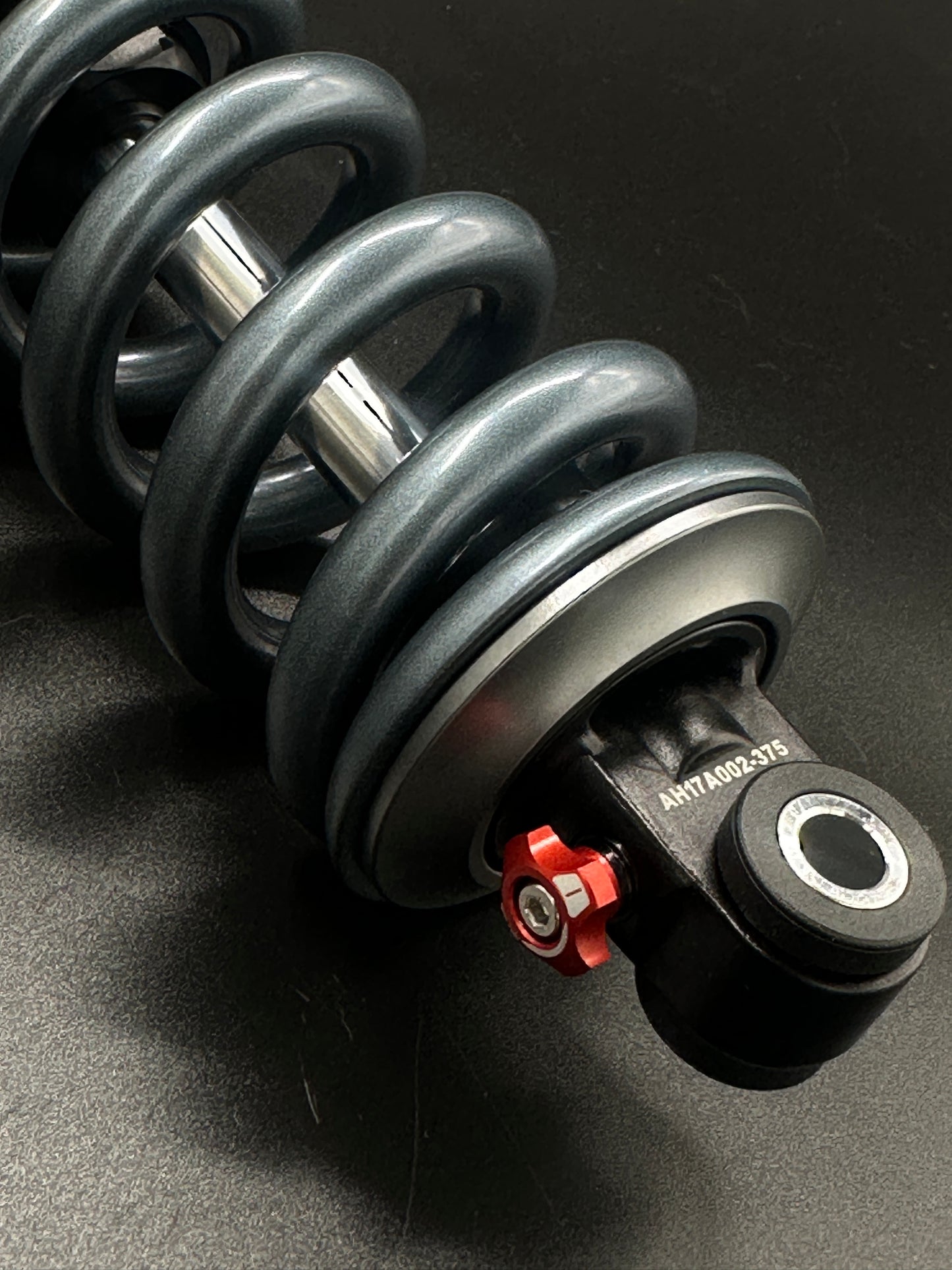

RFLOXA Suspension RAB53RV Rear Shock Absorber (550lbs)

The RFLOXA RAB53RV Rear Shock Absorber is a cutting-edge suspension system designed for versatility, durability, and precision performance across diverse terrains. Here's an overview based on the provided details:

Key Features

1. Advanced Shock Absorption

• Nitrogen Reservoir: Ensures consistent damping performance over extended use by minimizing fade due to heat.
• Oil-Gas Separation Structure: Prevents cavitation, ensuring smooth operation and enhanced rider comfort.

2. Versatile Performance

• Suitable for E-BIKES, traditional bicycles, and off-road electric bikes, handling everything from urban roads to rugged trails.
• Offers multi-stage damping adjustability:
  • Rebound: Fine-tunes the recovery speed after impacts.
  • High-Speed Compression: Manages sudden impacts and intense terrain shocks.
  • Low-Speed Compression: Optimizes response to gradual impacts for smoother pedaling and climbing.

3. Durable Construction

• Materials:
  • AL6061-T6 Aluminum for both the upper mount and main tube ensures lightweight yet robust durability.
  • 42CRMO Shaft and 55CRSI Spring Wire provide additional strength to handle high loads and impacts.
• Spring Options: Available in multiple weight categories (450lbs, 550lbs, and 600lbs) for riders between 80kg and 180kg.

4. Enhanced Comfort & Precision Adjustments

• Rubber Bladder in Air Chamber: Reduces small-bump damping fade for superior comfort on minor terrain changes.
• C-ring Retainer Spring Base: Enhances stability during high-impact use.
• Quick Maintenance: Easy-to-remove spring design simplifies servicing.

5. High & Low-Speed Compression Damping

• Low-Speed Compression: Ideal for smoother movements like pedaling and slow terrain transitions.
• High-Speed Compression: Offers control over abrupt, high-impact scenarios like jumps or drops.

Specifications

• Sizes Available (Eye-to-Eye x Travel):

  • 220 × 66 mm (8.66 × 2.60 inches)
  • 240 × 76 mm (9.45 × 2.99 inches)
  • 265 × 83 mm (10.43 × 3.27 inches)

• Adjustments:

  • Rebound
  • High-Speed Compression
  • Low-Speed Compression

• Weight Capacities:

  • 450lbs Spring: 80-100kg
  • 550lbs Spring: 100-130kg
  • 600lbs Spring: 130-180kg
