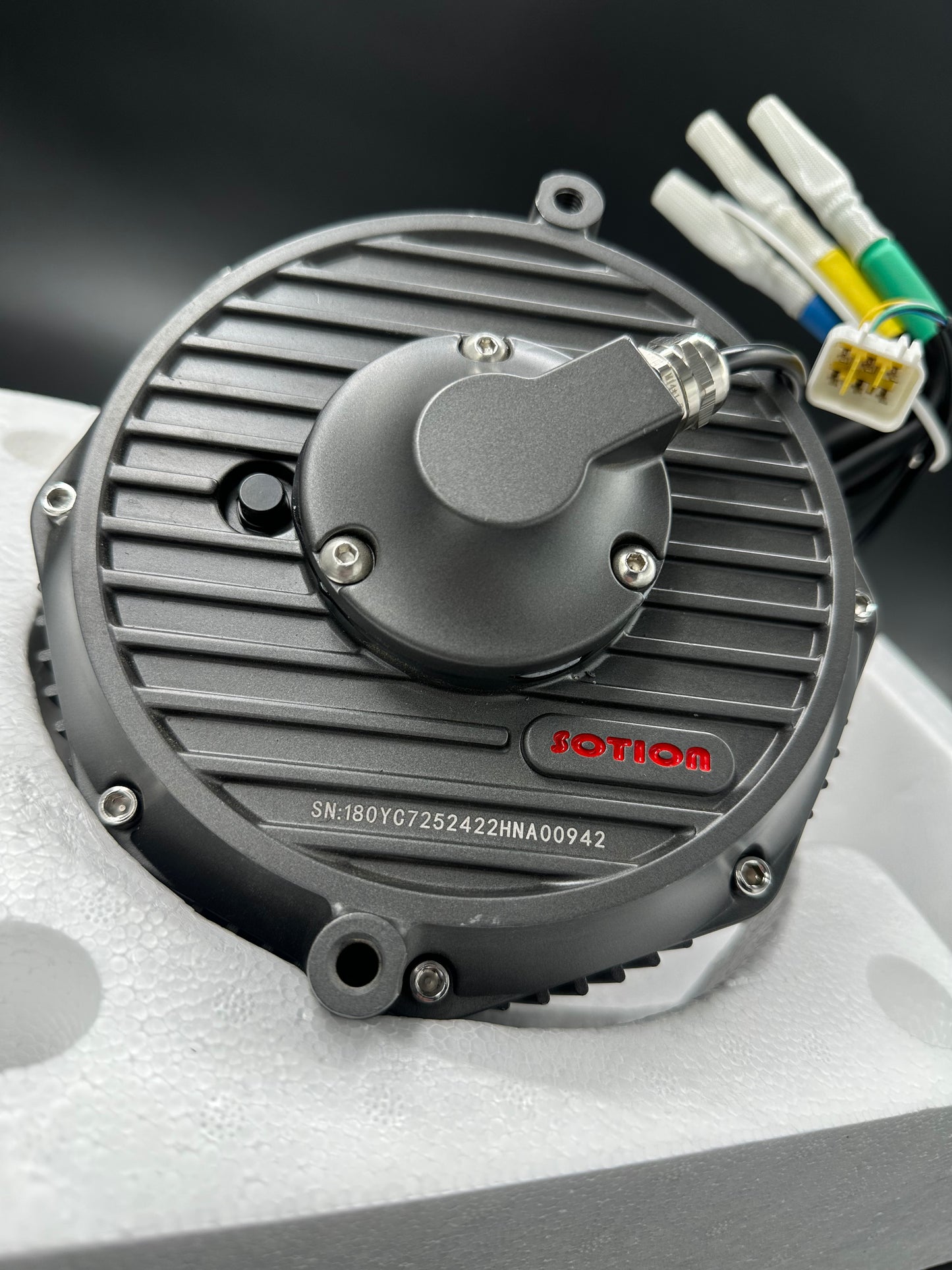

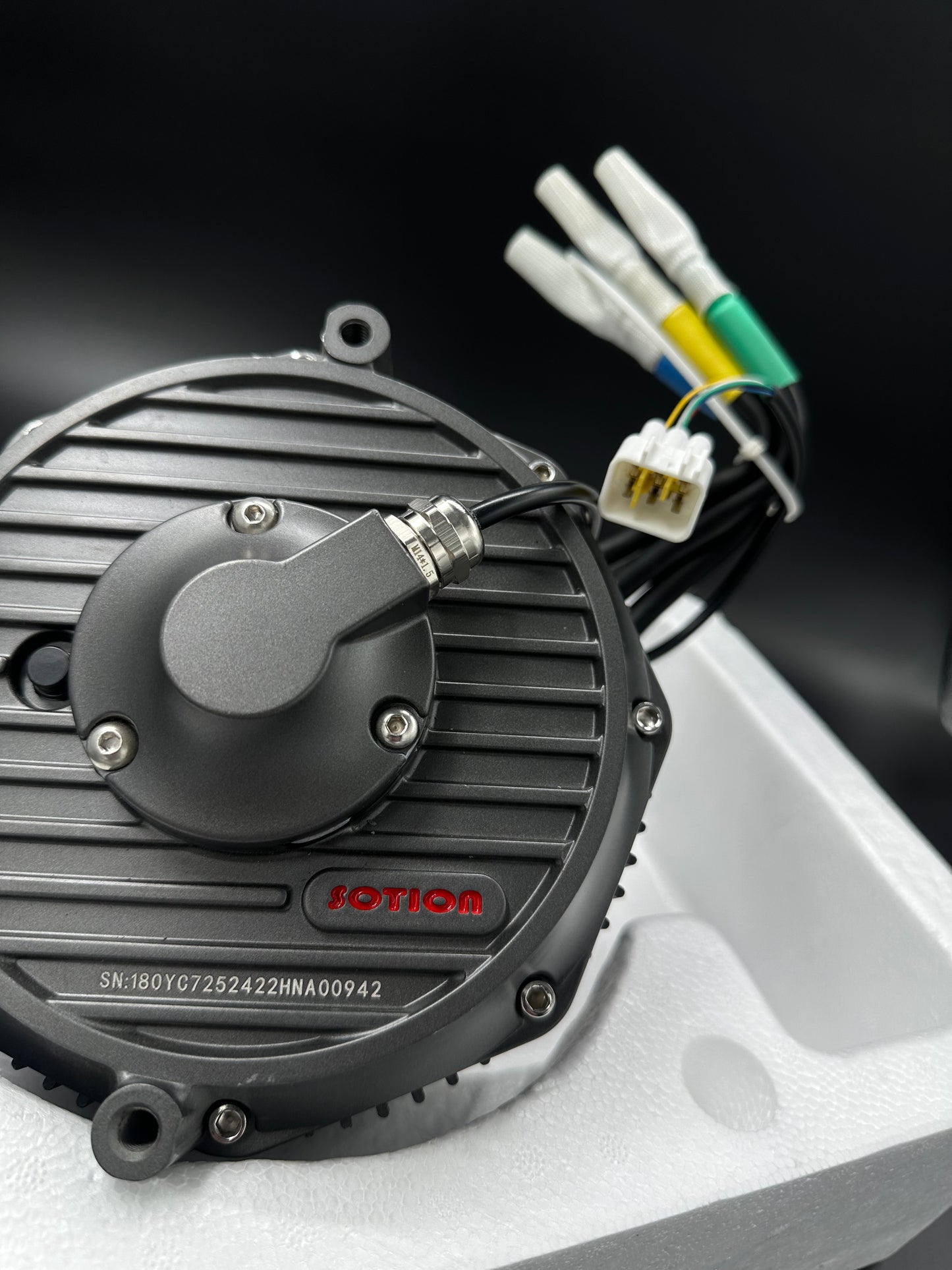

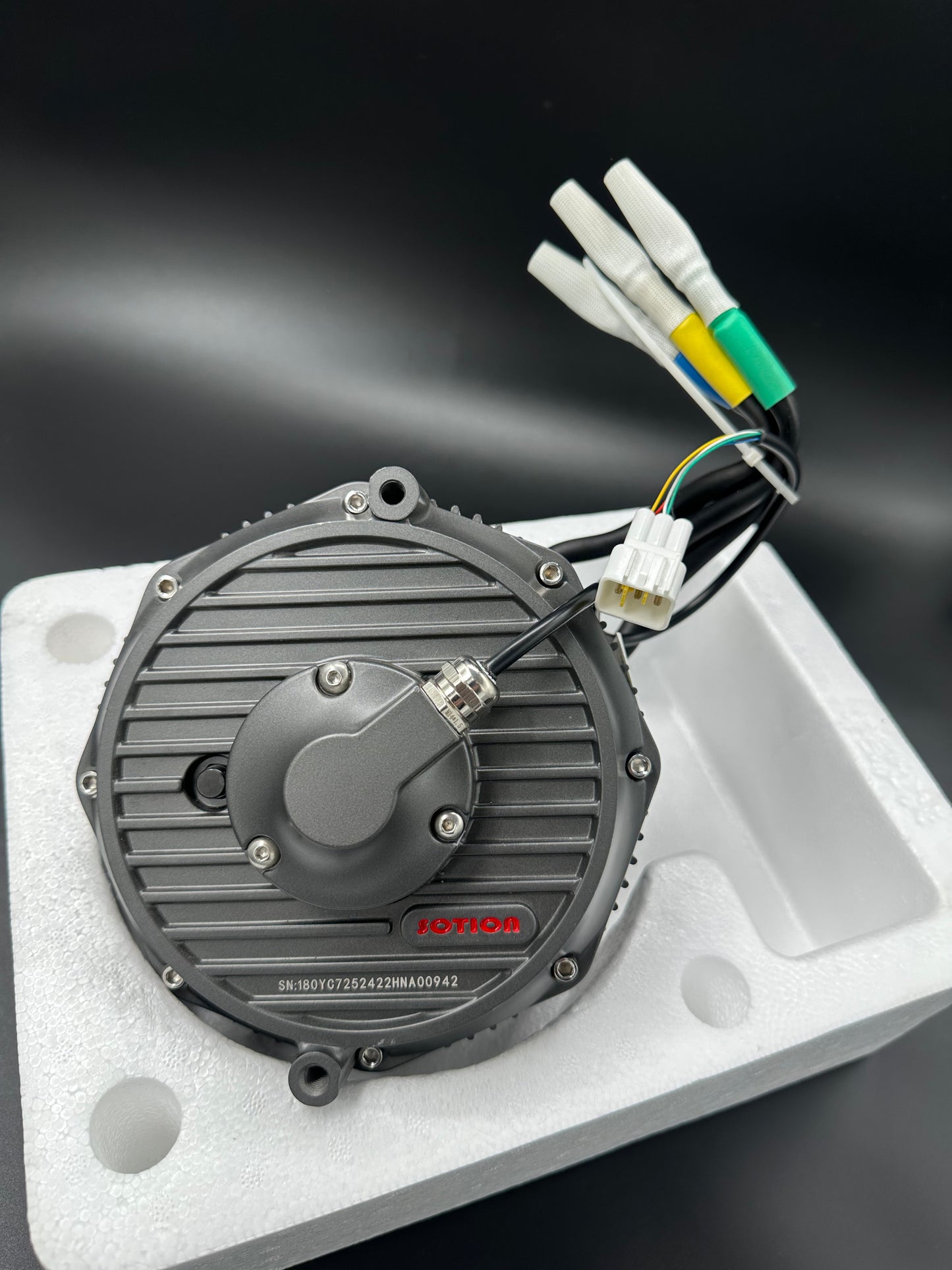

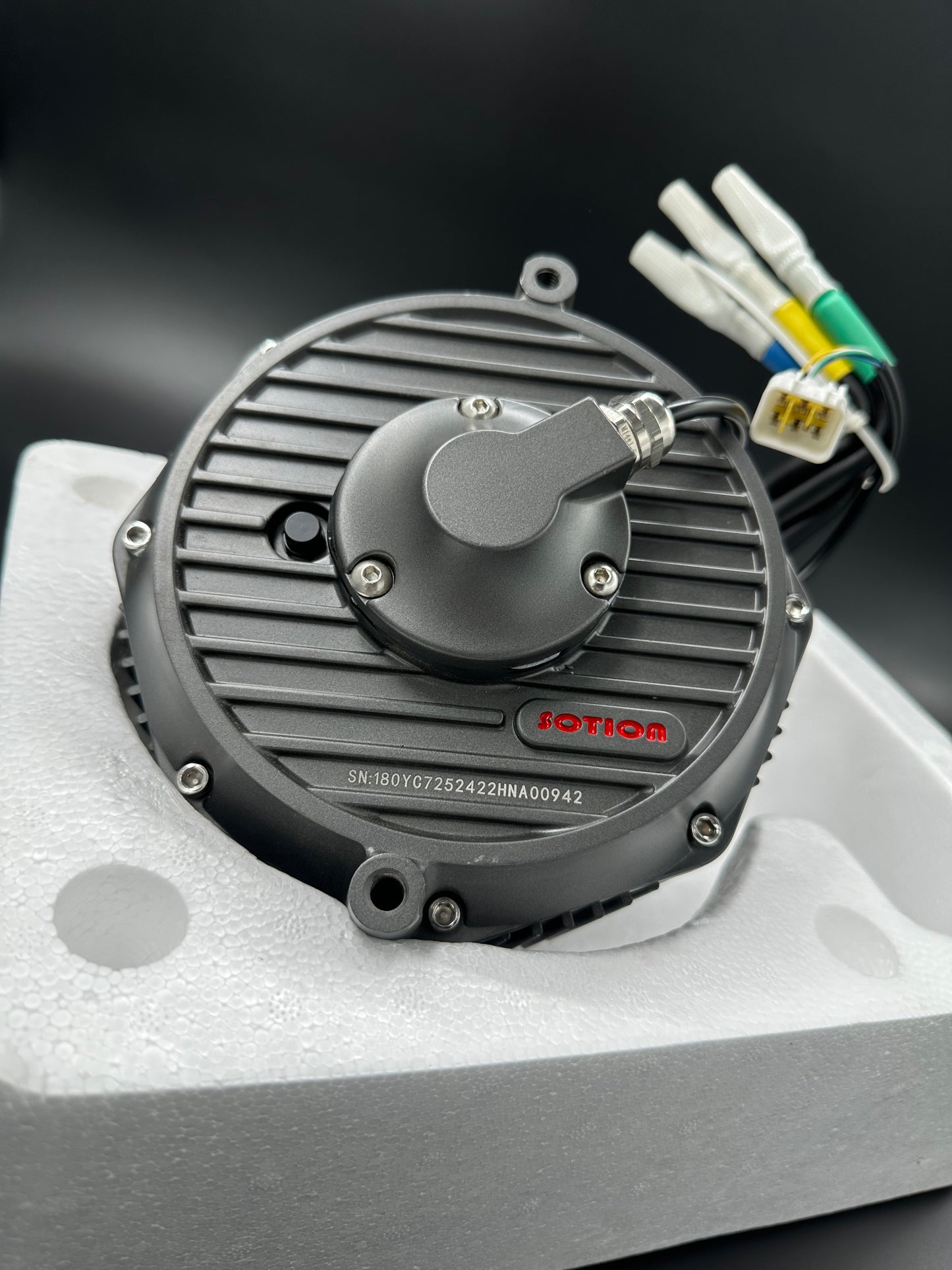

Surron light bee x Sotion Motor (hall sensor version ) 6 pin

Product model

FW01 72V13KW

Motor size

φ180*175mm

Motor weight

15 KG

color

Black/ Silver/Red

Installation Form

Mid

Rated voltage

72 V

Continuous power

13 KW

Peak power

26 KW

Continuous torque

21N.m

Peak torque

62 N.m@Phase current RMS540A

Rated speed

6000 RPM

Max RPM

10000 RPM

Max efficiency

≥95 %

Transmission ratio

Number of pole pairs

5

Position sensor

Hall Sensor

Temperature sensor

PT1000

Insulation class

F(155°C)

Protection grade

IP67

Cooling method

Air cooling

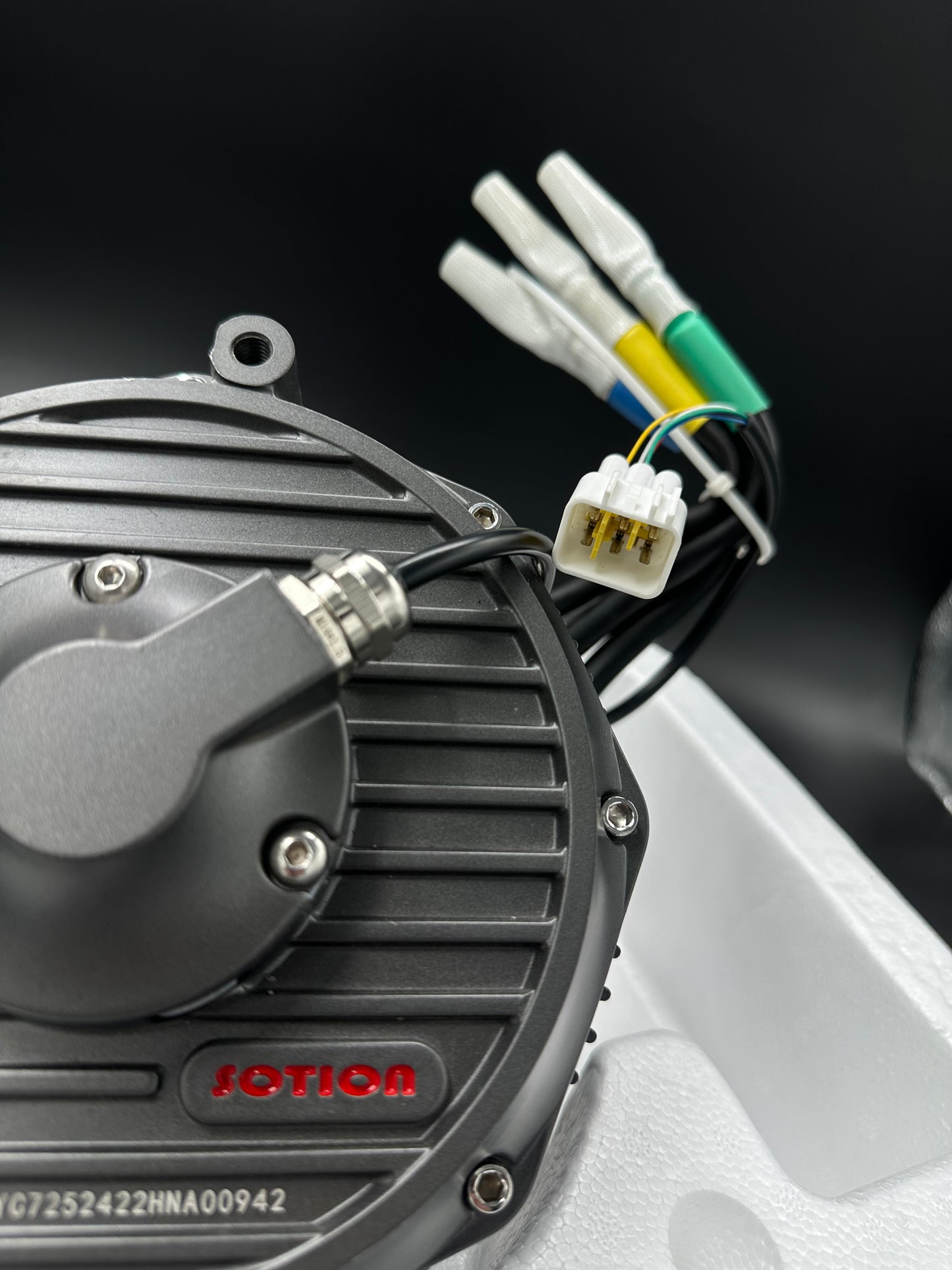

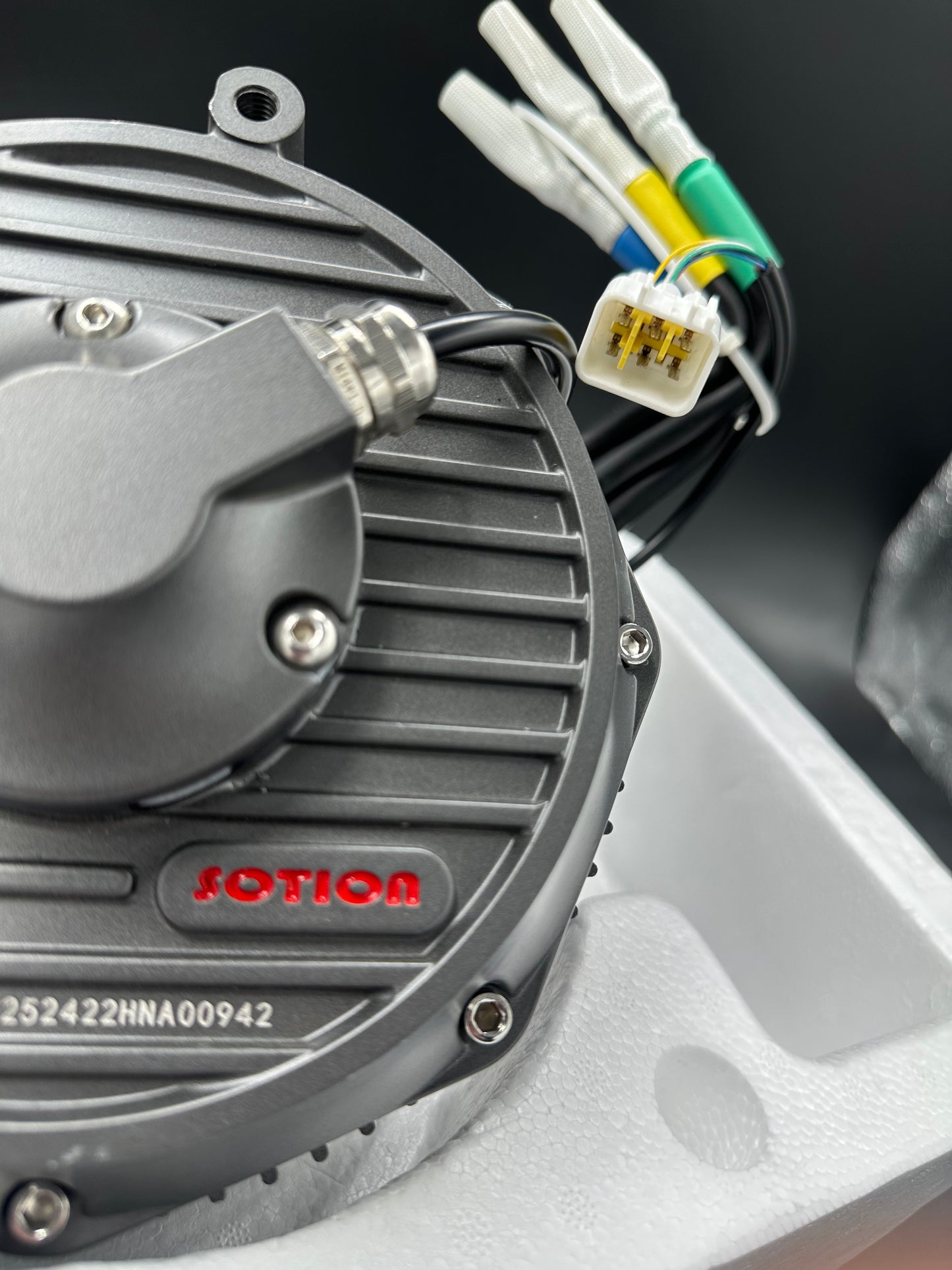

Phase wire

color

yellow

green

Blue

Definition

U

V

W

Terminal

SC10-6

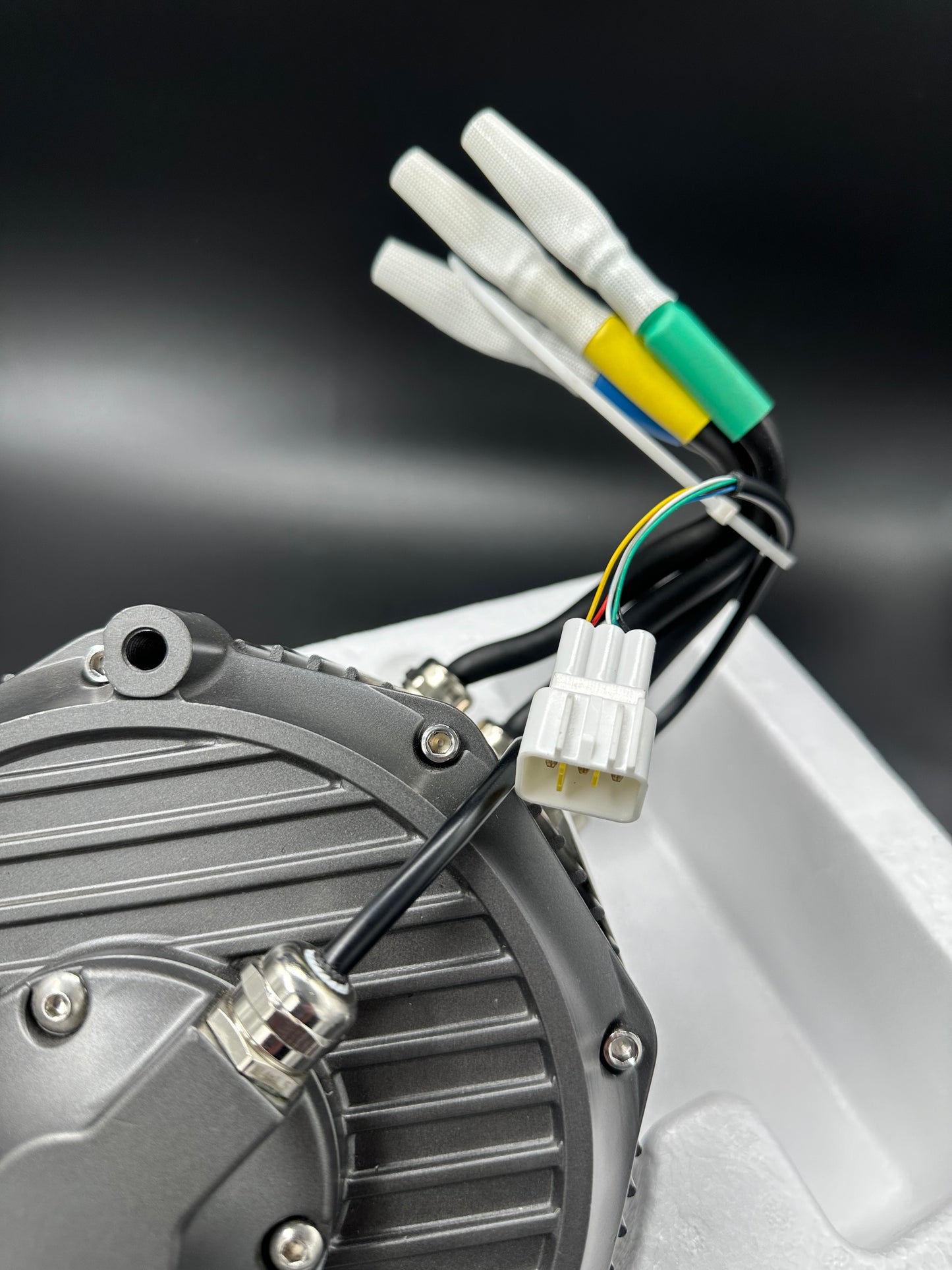

signal wire

color

red

yellow

green

blue

purple

white

brown

orange

black

Definition

+12V

A

B

Z

+PT1000

PWM

-GND

Termina

DJ7091Y-2.3-11
